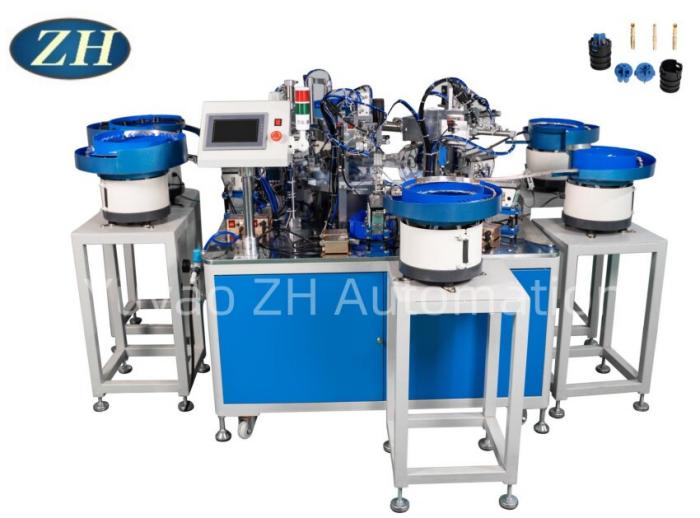

Automatic Pin Insert Assembly Machine

1, The working principle

The main working principle of the automatic pin insertion machine is to automatically operate through the manipulator or mechanical arm, pair the plug and socket, and complete the automatic insertion of the connector. Its work flow usually includes feeding, calibration, pairing, plugging and other processes. The feed system supplies the connector components to the robot gripper via a vibrating disk or feeder device, the manipulator/arm is responsible for the automatic pairing and plugging of the components, and the control system is responsible for controlling the action and position of the manipulator/arm to ensure that the plugging is accurate.

2, Application field

Automatic pin insertion machines are widely used in many fields, including but not limited to smart phones, home appliances, automotive electronics, etc. In the production line of smart phones, the automatic pin insertion machine can complete the assembly of high-density circuit boards with higher efficiency, which greatly improves the production efficiency. At the same time, thanks to its high-precision needle insertion technology, product quality is also guaranteed and the workload of subsequent quality inspection is reduced.

3, Advantages

1.Improve production efficiency: Automatic pin insertion machine can greatly improve production efficiency and reduce manual operation time.

2.Ensure product quality: high-precision pin technology can ensure product quality and stability.

3.Labor cost savings: Automation reduces labor requirements and reduces production costs.

4.Easy maintenance: The modular design and easy fault diagnosis make the automatic pin insertion machine easy to maintain.

4, Safety precautions

1.When operating an automatic needle insertion machine, always be vigilant to avoid contact between your hands or body parts and the cutting parts or rotating parts of the needle insertion machine.

2.The user must carefully read and understand the operating instructions of the pin insertion machine and follow the correct operating procedures.

3.Ensure that the power supply and control mechanism of the pin insertion machine are in good condition and have no defects or faults.

4.Earplugs or other hearing protection devices should be worn when using the needle insertion machine to protect hearing health.

5, Maintenance and maintenance

In order to ensure the long-term stable operation of the automatic pin insertion machine, it is necessary to carry out regular maintenance and maintenance. This includes cleaning machine residue, checking cables and wiring, lubricating transmissions such as gears and chains, and regularly replacing badly worn parts. In addition, it is necessary to check and maintain the electrical control box to ensure the safety and reliability of the equipment.

In summary, as an efficient automatic assembly equipment, automatic pin insertion machine plays an important role in electronic manufacturing and other related industries. By understanding its working principle, application field, advantages and safety precautions and other aspects of information, you can better use this equipment to improve production efficiency and quality stability.
