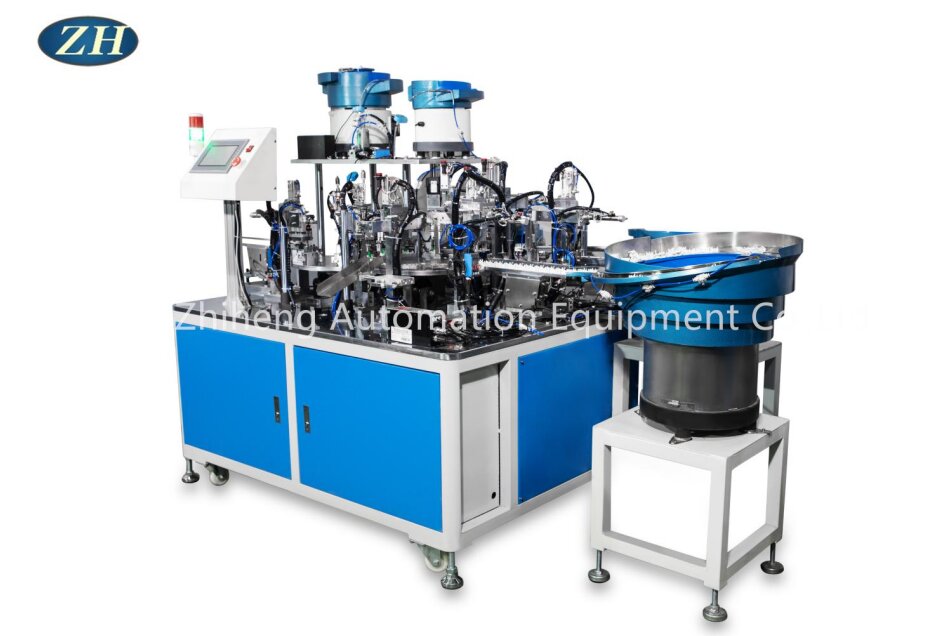

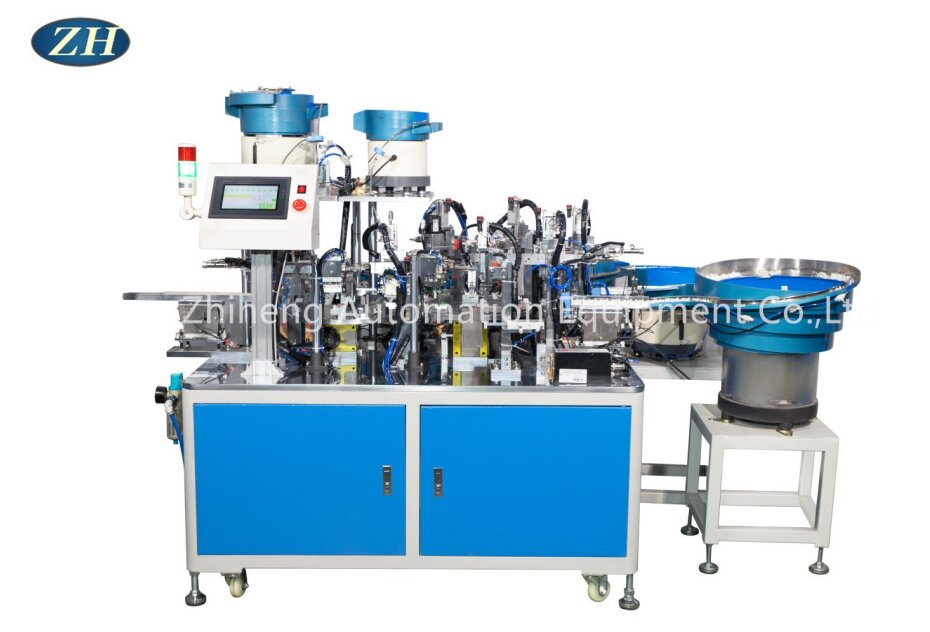

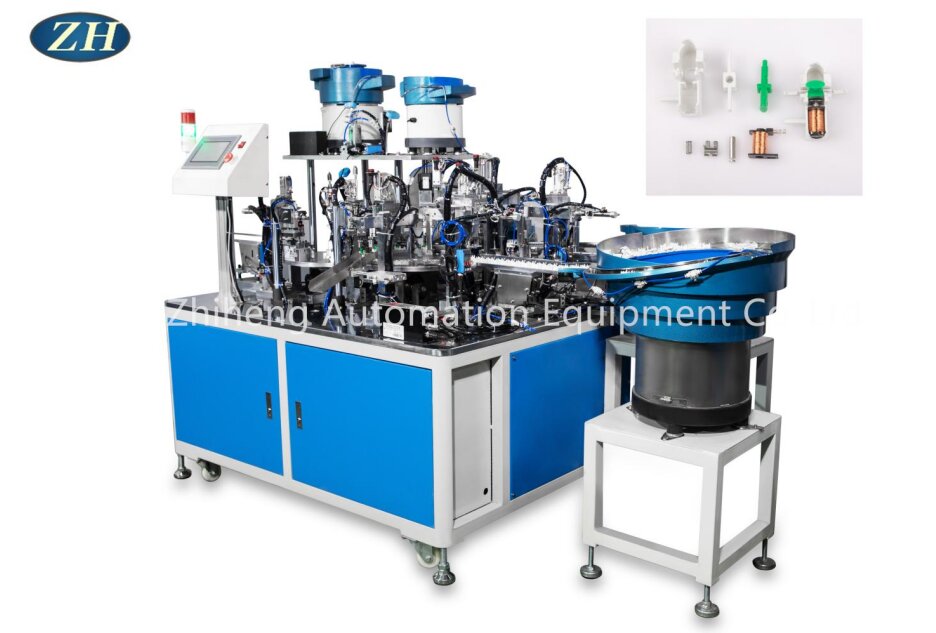

High Degree Of Push-Button Assembly Machine Line

Introduction of High Degree Of Push-Button Assembly Machine Line:

Yuyao Zhiheng is one of professional China High Degree Of Push-Button Assembly Machine Line manufacturers and suppliers, if you are looking for the best High Degree Of Push-Button Assembly Machine Line with low price, consult us now!High Degree Of Push-Button Assembly Machine Line adopts servo motor and precision screw drive to achieve the button assembly position error ≤±0.01mm, which meets the high-precision assembly requirements of small parts.Key modules (such as feeding system, assembly station, detection unit) support rapid reconfiguration to meet the assembly needs of different types of buttons.Integrated MES (Manufacturing Execution System) to record the assembly parameters of each button (such as torque, Angle, time) for full process traceability.

Parameter (Specification) of High Degree Of Push-Button Assembly Machine Line:

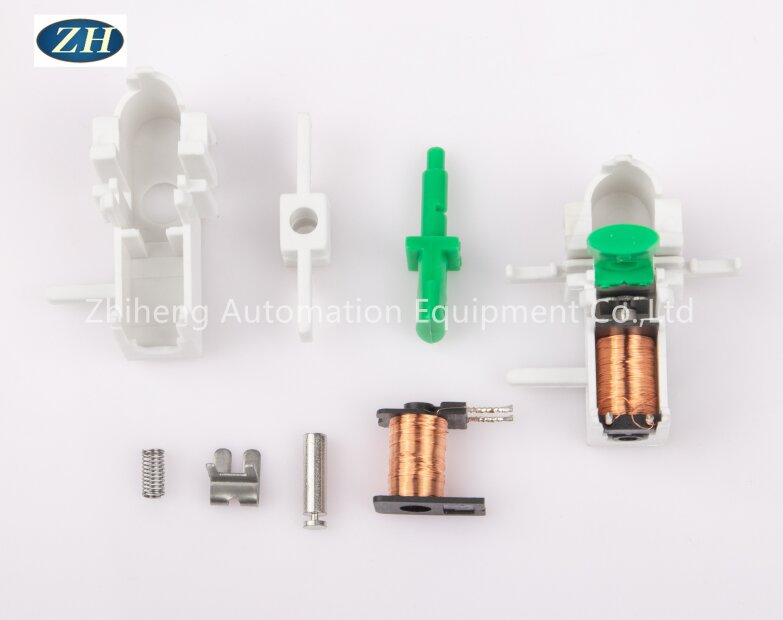

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
