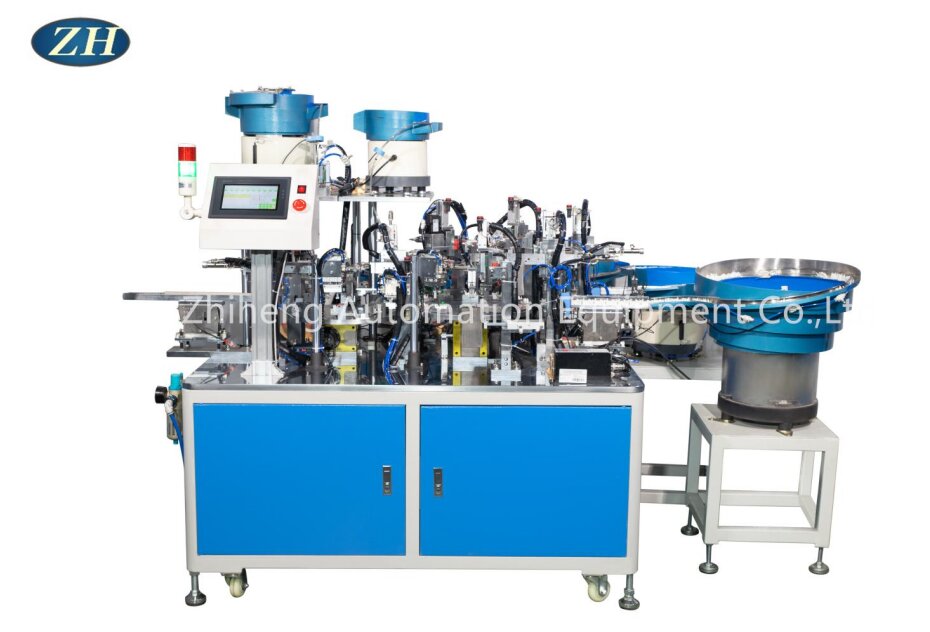

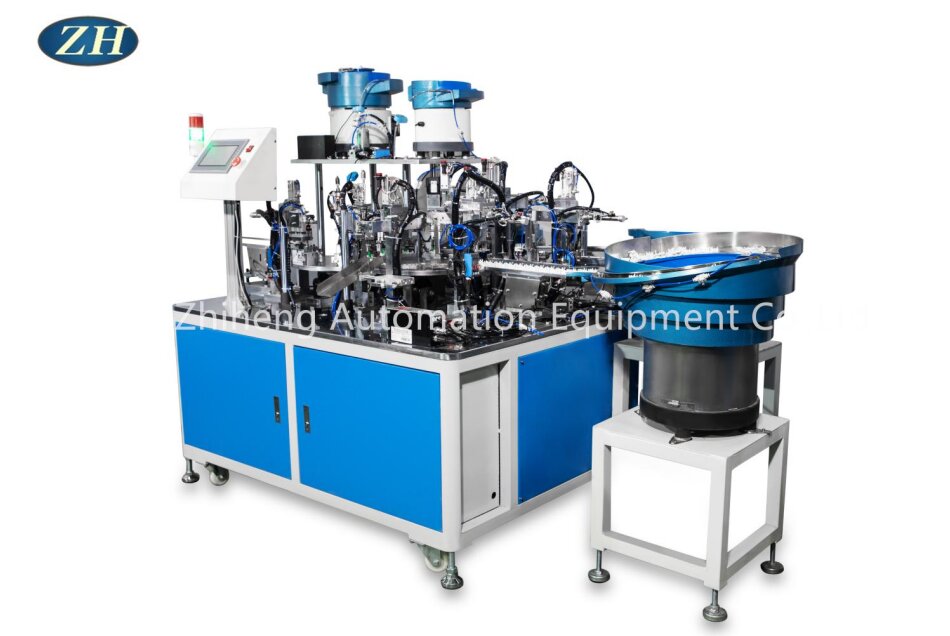

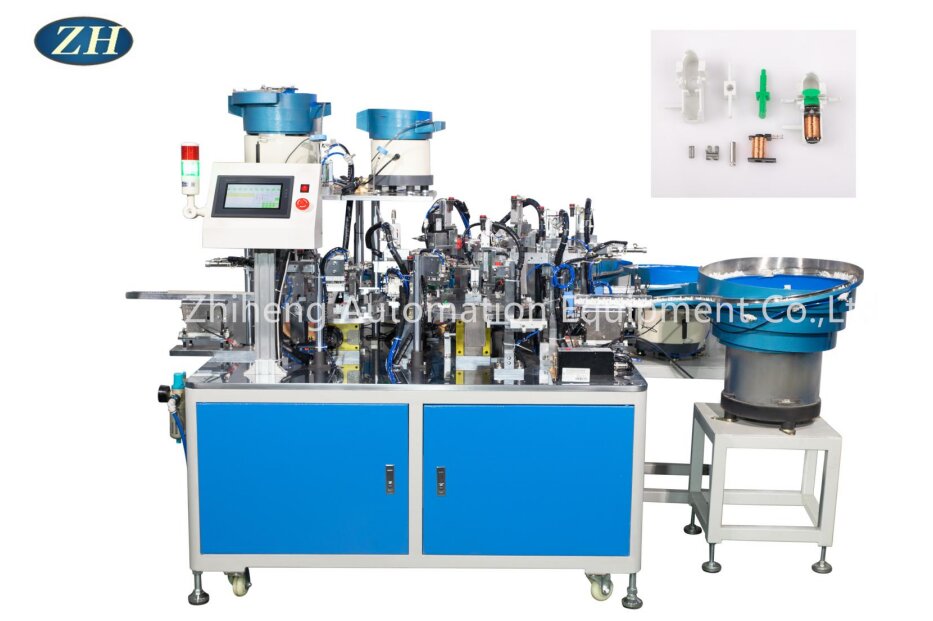

Push-Button Assembly Machine Line Consistency

Yuyao Zhiheng is one of prominent manufacturer, producer, and exporter of Push-Button Assembly Machine Line Consistency in China.Push-Button Assembly Machine Line Consistency adopts high-strength alloy materials and precision machining technology to ensure the dimensional accuracy and wear resistance of the core components of the equipment (such as guide rails and lead screws), and reduce the assembly deviation caused by mechanical wear.

Model:ZH-56

Send Inquiry

Product Description

Introduction of Push-Button Assembly Machine Line Consistency:

You can purchase Push-Button Assembly Machine Line Consistency from Yuyao Zhiheng with confidence, as we are a proficient producer of high-quality Push-Button Assembly Machine Line Consistency. We promise to provide you with the best after-sale service and prompt delivery.Push-Button Assembly Machine Line Consistency monitors the assembly position in real time through servo motors and encoders, and dynamically adjusts it in combination with PLC (programmable logic controller) to ensure the assembly torque, Angle and depth of each button are consistent.Key parameters such as assembly speed, pressure, and temperature are solidified into the equipment program, and one-click switching is achieved through HMI (human machine interface) to reduce process fluctuations caused by human intervention.

Parameter (Specification) of Push-Button Assembly Machine Line Consistency:

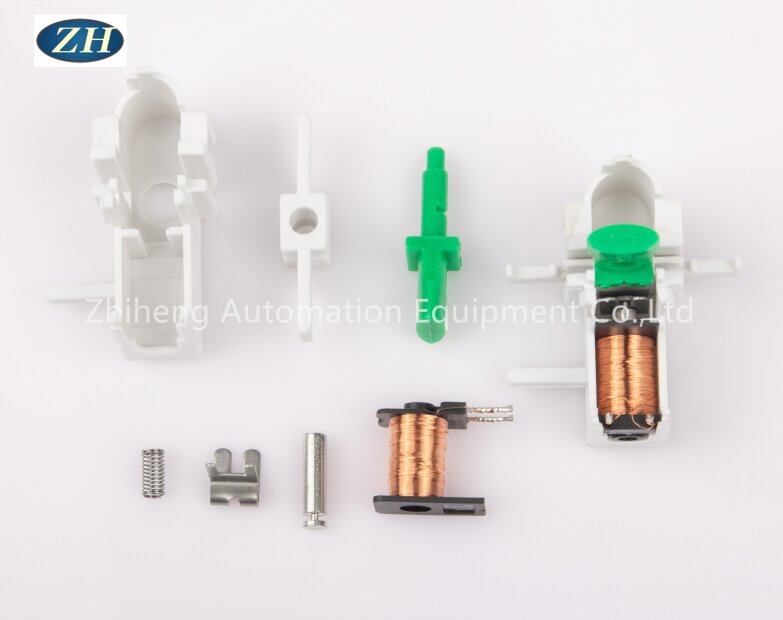

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
