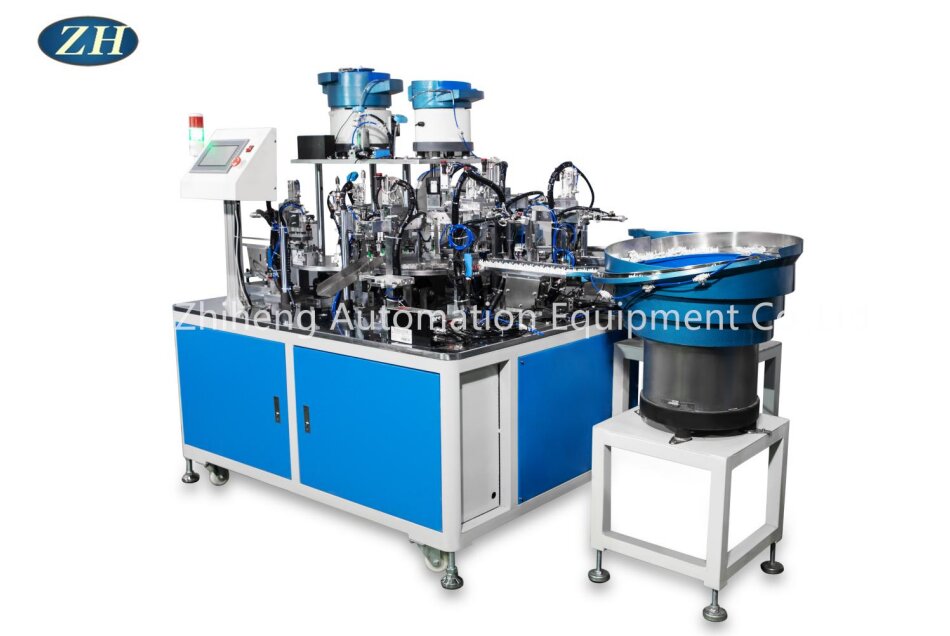

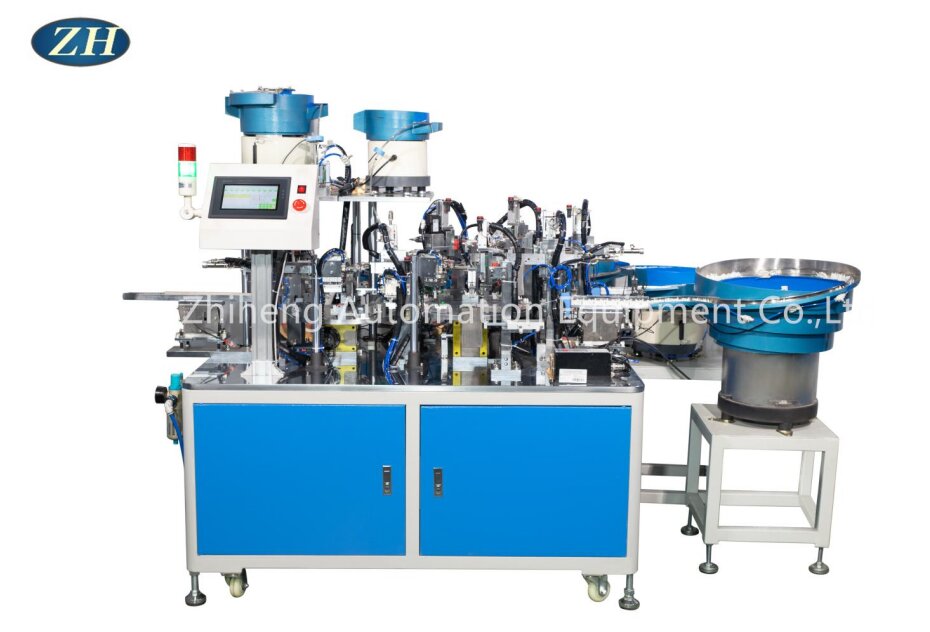

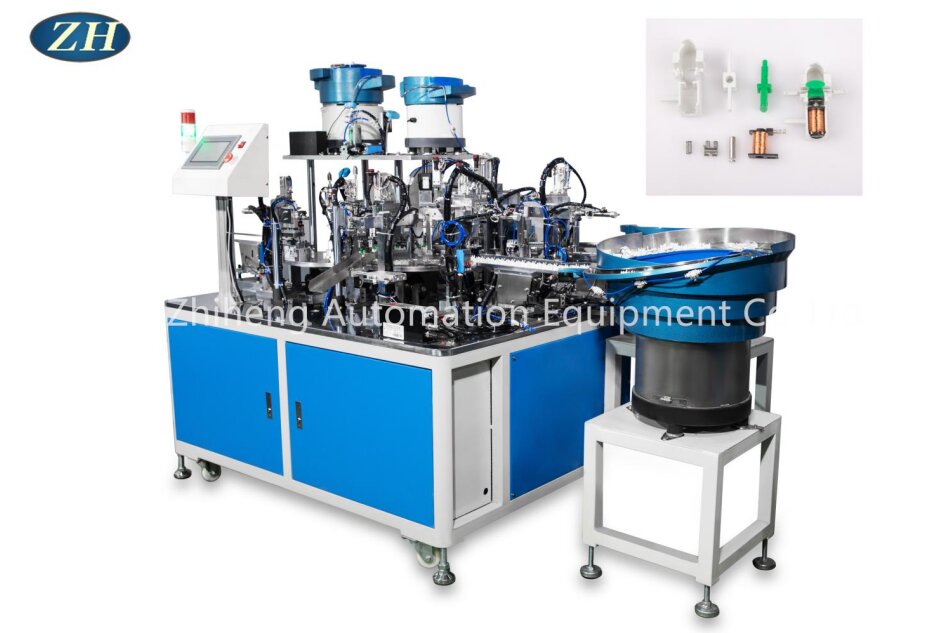

Push-Button Assembly Machine Line Good Security

Introduction of Push-Button Assembly Machine Line Good Security:

High quality Push-Button Assembly Machine Line Good Security is offered by China manufacturers Yuyao Zhiheng. Buy Push-Button Assembly Machine Line Good Security which is of high quality directly with low price.The operation area of the Push-Button Assembly Machine Line Good Security is equipped with a protective cover and an interlocking device to ensure that the equipment automatically stops when the protective cover is opened.The motor and drive system are equipped with overload protection devices to prevent equipment damage due to overload operation.Integrated PLC (Programmable logic controller) and HMI (human-machine interface), real-time monitoring of equipment operating status.Through sensor data acquisition, fault warning and automatic diagnosis are realized to reduce downtime.

Parameter (Specification) of Push-Button Assembly Machine Line Good Security:

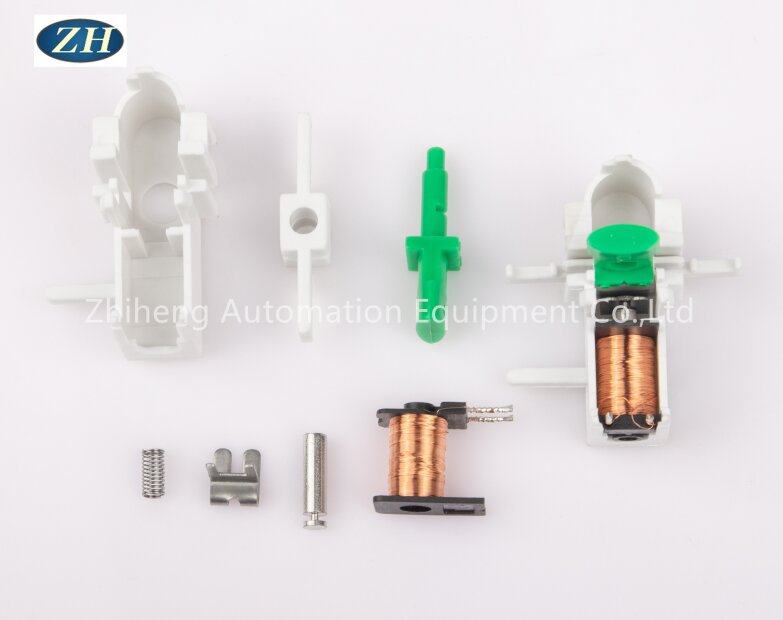

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
