Push-Button Assembly Machine Line High Accuracy

Introduction of Push-Button Assembly Machine Line High Accuracy:

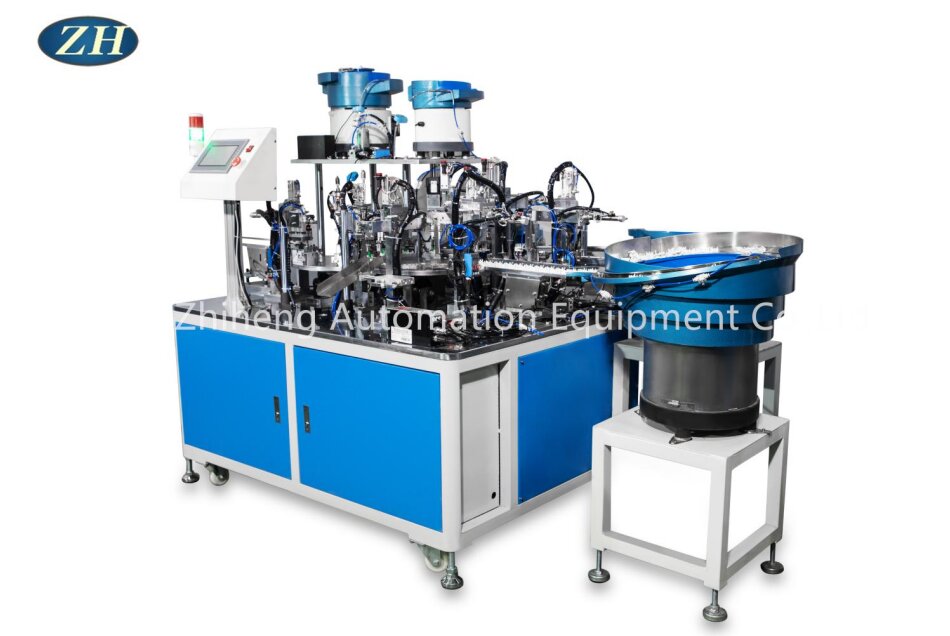

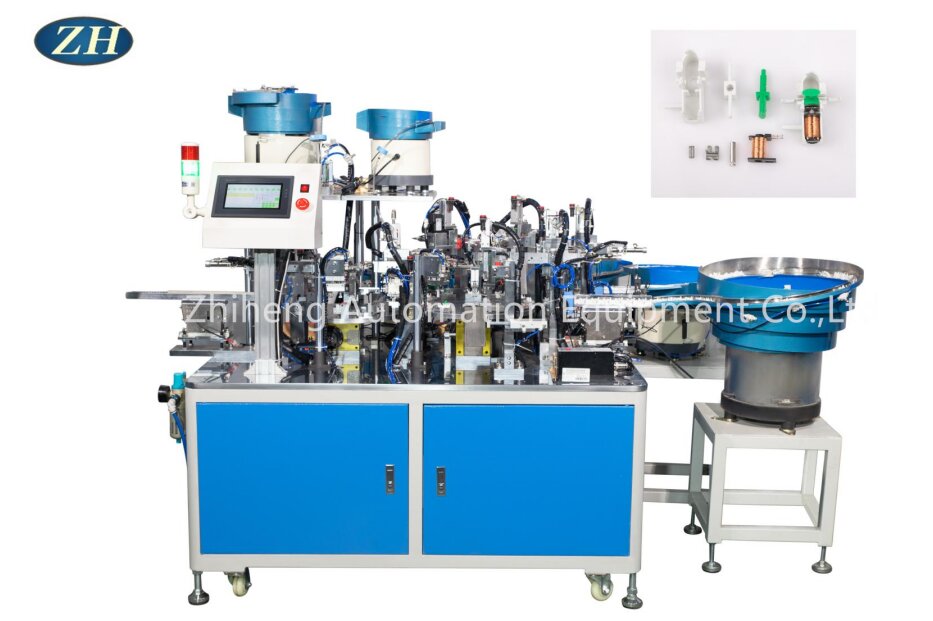

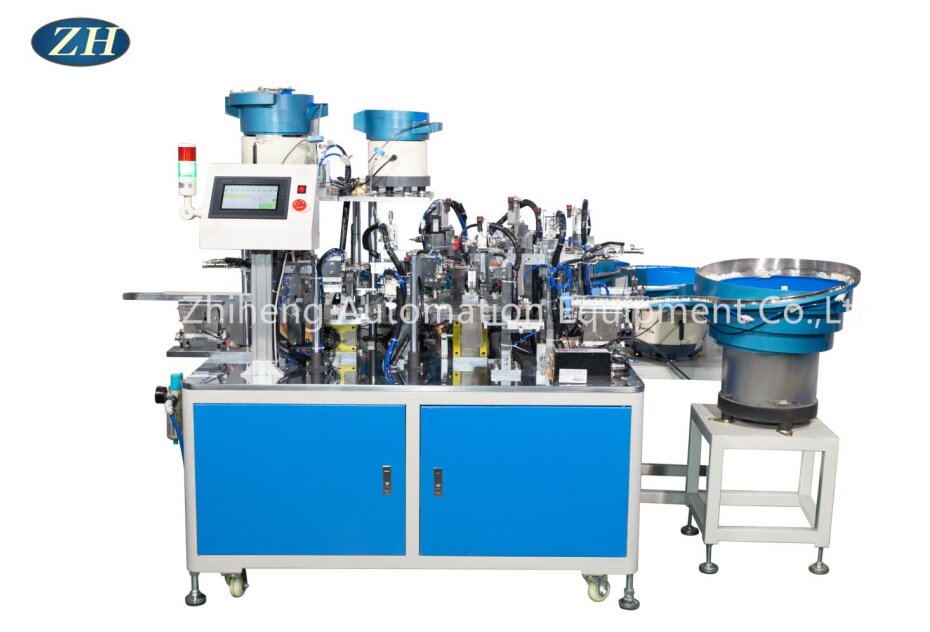

As one of professional high quality Push-Button Assembly Machine Line High Accuracy manufacturers, you can rest assured to buy Push-Button Assembly Machine Line High Accuracy from Yuyao Zhiheng and we will offer you the best after-sale service and timely delivery.Push-Button Assembly Machine Line High Accuracy adopts servo motor, high-precision sensor (such as laser displacement sensor) and closed-loop control system to ensure that the button assembly position error is less than ±0.01mm.The production line is composed of feeding, assembly, testing, packaging and other modules, which supports rapid change and ADAPTS to the assembly needs of different types of buttons. Key components (such as robotic arms and clamps) are designed in a standardized manner for easy maintenance and upgrading.

Parameter (Specification) of Push-Button Assembly Machine Line High Accuracy:

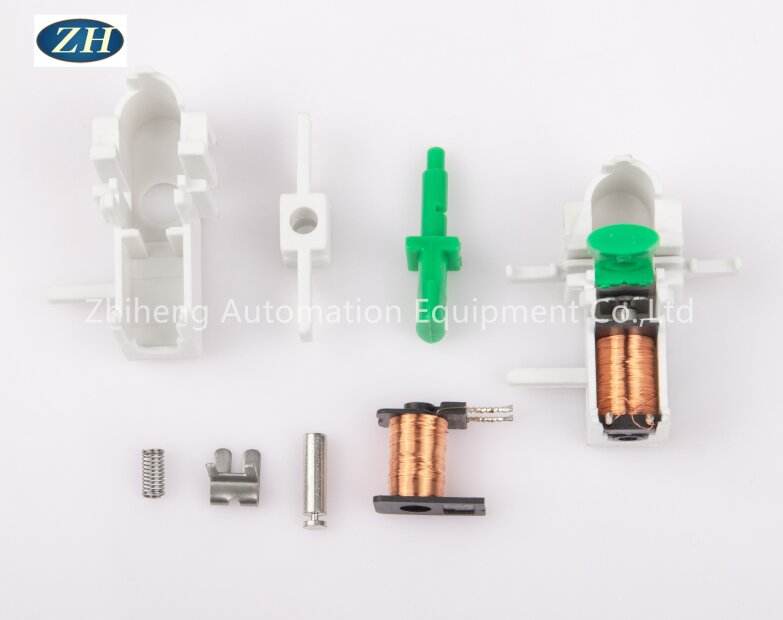

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
