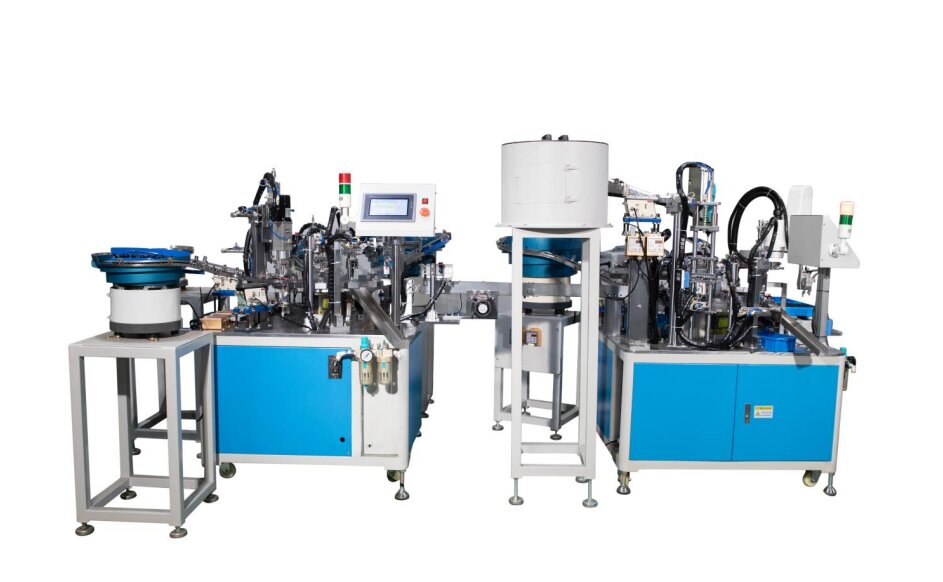

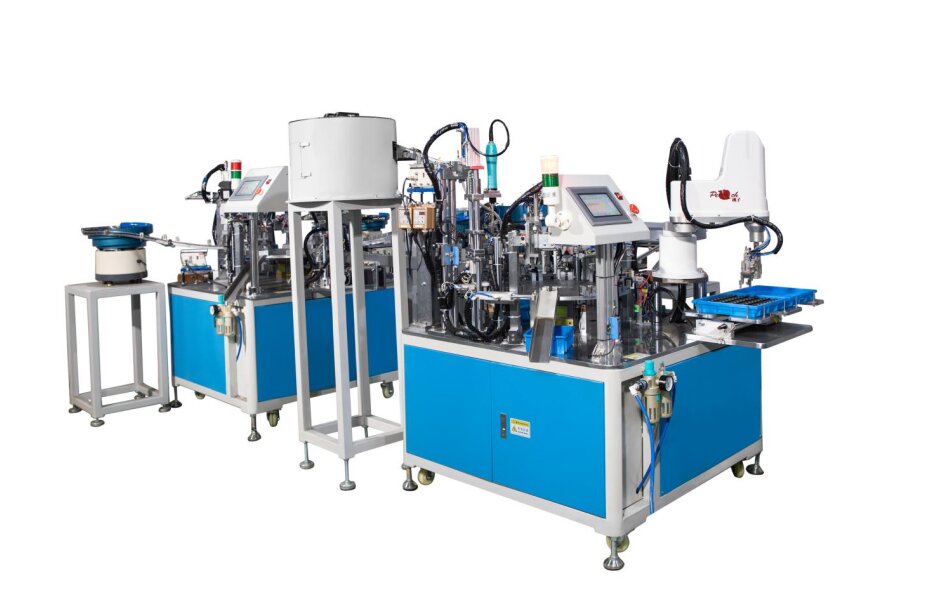

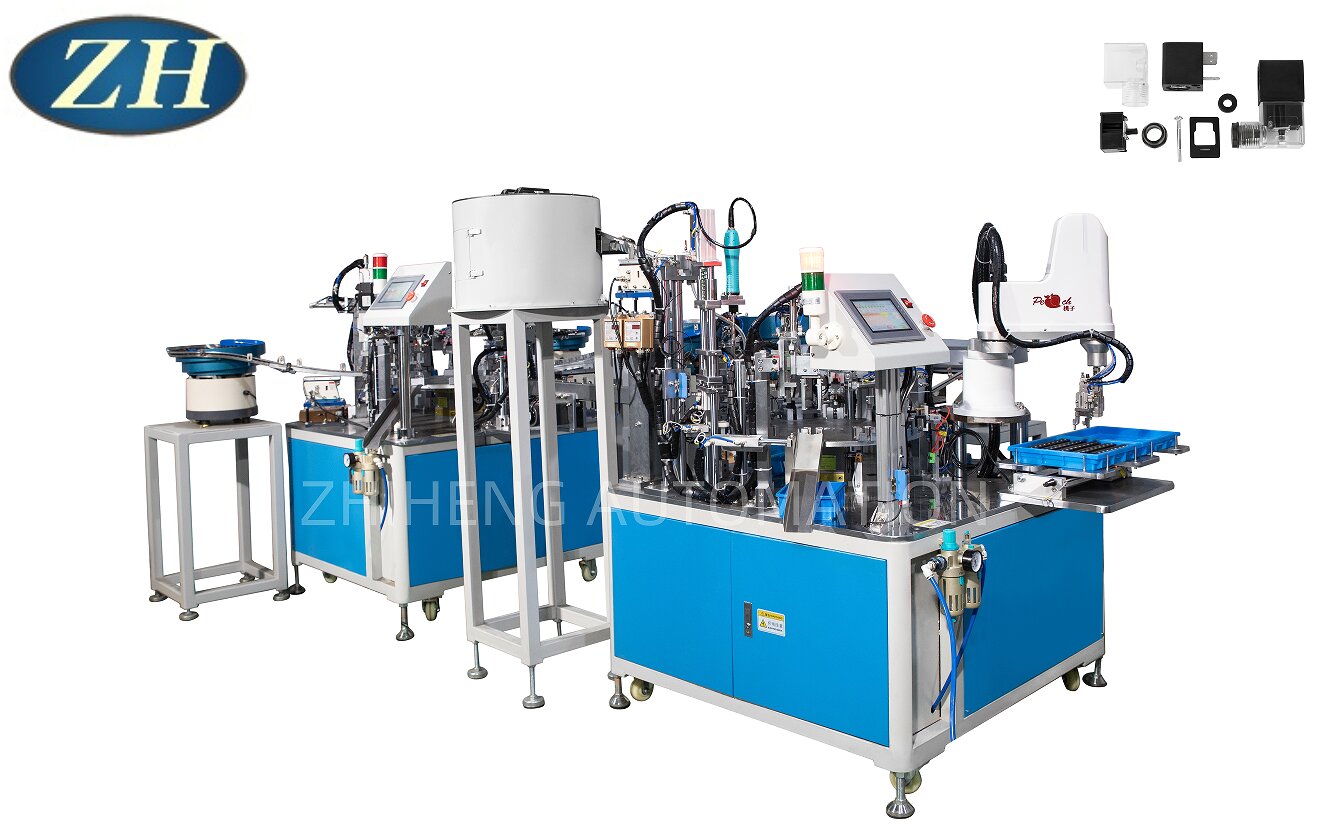

Solenoid Valve Assembly Machine Line Good Security

Introduction of Solenoid Valve Assembly Machine Line Good Security:

As one of professional high quality Solenoid Valve Assembly Machine Line Good Security manufacturers, you can rest assured to buy Solenoid Valve Assembly Machine Line Good Security from Yuyao Zhiheng and we will offer you the best after-sale service and timely delivery.Solenoid Valve Assembly Machine Line Good Security adopts a fully enclosed protective structure, and key stations (such as valve body pressing and coil winding) are equipped with transparent protective covers, which can not only observe the assembly process in real time, but also effectively isolate splashing objects or abnormal workpieces.Through high-precision guide rail and servo motor drive, to ensure that the valve body, valve core and other parts in the assembly process positioning accuracy reached ±0.01mm, to avoid collision or stuck due to position deviation. The clamping device uses a torque sensor to monitor the clamping force in real time to prevent overload from damaging the workpiece or equipment.

Parameter (Specification) of Solenoid Valve Assembly Machine Line Good Security:

Machine No.1：

1.Automatic feeding covers;

2. Automatic feeding gasket

3.Automatic feeding plastic washer

4.Automatic feeding screws

5.Automatic feeding of circuit board components, automatic circuit board detection（24V)，

6.Automatic assembly

7. Automatic blanking (blanking of good and bad product）

Machine No.2：

1. Automatic feeding coils by mechanical arm

2.Automatic feeding rubber blanket

3.Automatic feeding of upper cover assembled

4.Automatic feeding screws

5.Automatic locking screws

6.Automatic blanking (blanking of good and bad product）

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1600-1800PCS/hour

.
